조립/검사설비

우주•항공 및 각종 무기체계의 운영환경에 적합한 PBA 조립/검사 설비 및 인력을 보유하고 있습니다.

...
Clean Bench
...

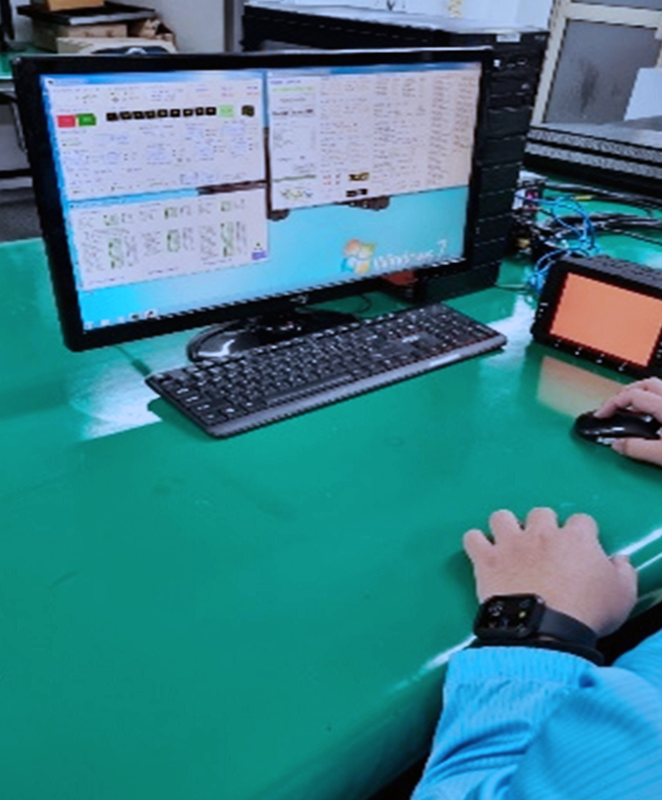

Function Test
...
Temperature Chamber
...
Vibration Test System
...
Router

설비특징

Process Facility Specification

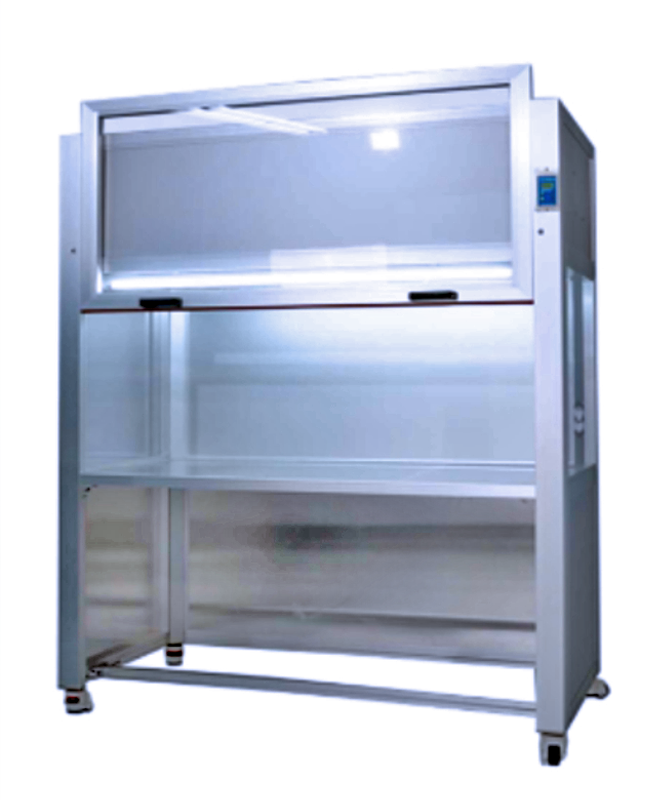

Clean Bench WBCV-4
  • Main Filter ; ULPA Filter
  • Air Volume : 24CMM
  • External Dimension : 2095x757x1,800mm
  • Class : Cubic feet 1,000
  • Power : 220V

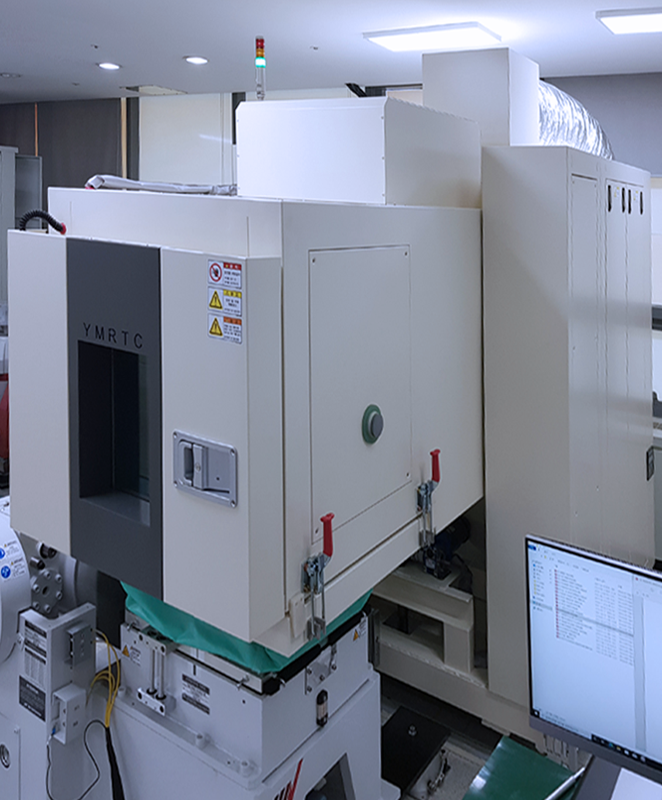

Temperature Chamber YM-THC-600S
  • Temperature Test
  • Temperature Range : -50℃ ~ +150℃
  • Rate of temperature change : 5℃/min
    (-40℃ ~ +150℃)
  • Dimension : 600(W)x600(D)x600(H)
  • Power : 380V, 60Hz, 3상, 22KW(50A)

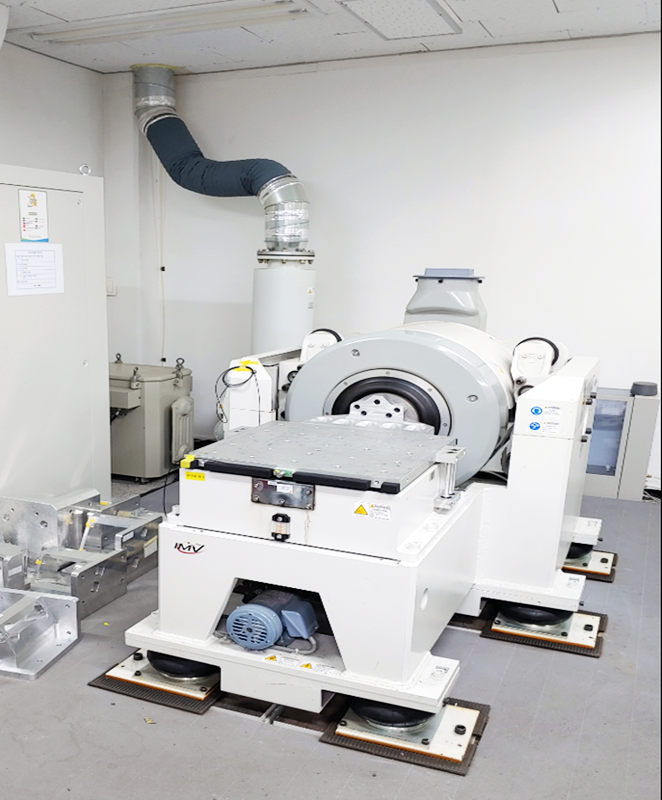

Vibration Test I210/SA2M+TBH-5
  • Frequency : Dc ~ 3,000Hz
  • Rated Force For Sine Wave : 1,632Kgf
  • Random : 1.142Kgf / Shock Wave : 3,426Kgf
  • Acceleration : 127.5G
  • Max Velocity : 2.2m/s. Displacement : 51mmp-p
  • Armature Mass : 12.8Kg
  • Shaker Table Diameter :200mm
  • Max. Payload : 300Kg , Cooling : Forced Air

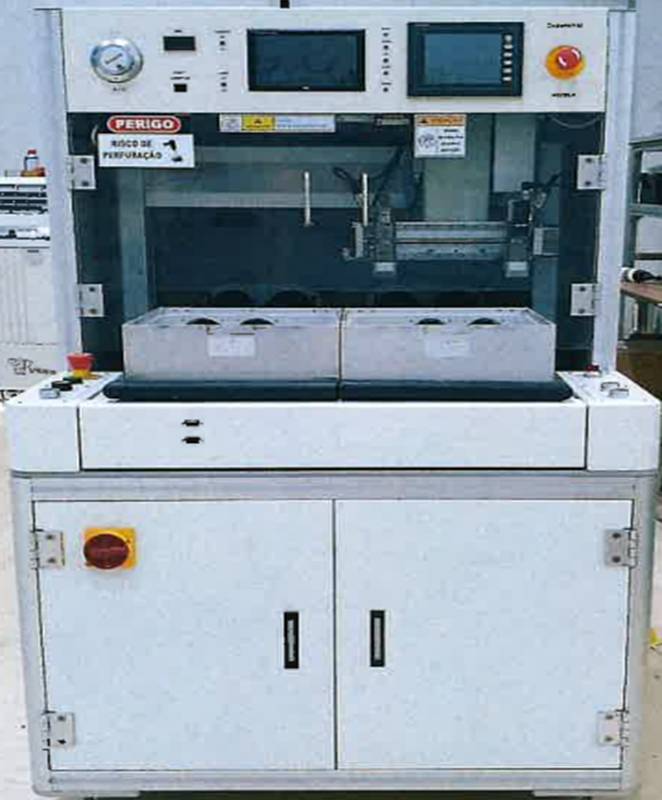

Router DPL-T

ROT2-120302-01



  • Jig Size : 280 x280 mm
  • Twin Table Offline Router
  • Dual Spindles
  • Highly Efficient Dust Collecting System



조립/검사 관련 인증

Category Title
System AS9100
Engineer /Operator/QC IPC-610 (CIT, CIS)
Standar Assembly & Testing Standard
