IMT 제조설비

우주•항공 및 각종 무기체계의 운영환경에 적합한 PBA 조립/검사 설비 및 인력을 보유하고 있습니다.

...

IMT & Inspection

...

Selective Soldering

...

Automated X-Ray
Inspection

...

Automated Inspection
A.O.I

설비특징

Process Facility Specification

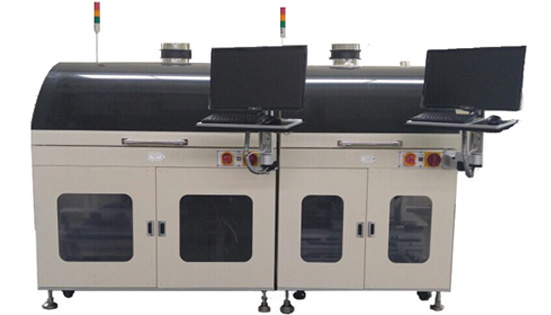

Selective Soldering BISS-M100A
  • Flux gun : Jet spray
  • 1 solder port zone
  • N2 port applied/N2 heater
  • Applicable PCB : 50X50 ~ 400X330mm

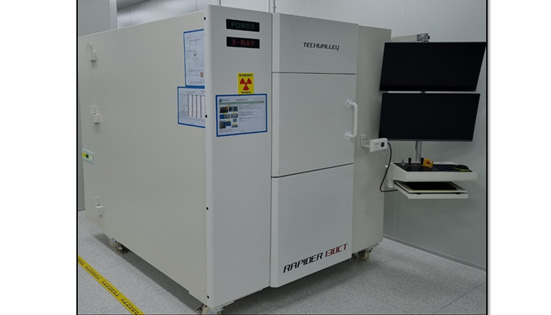

Automated X-Ray Inspection RAPIDER 130CT
  • Programing using CAD data
  • Manipulator System : 5 Axis
  • Table Size : 340X440mm
    X Axis 450mm, Y Axis : 350mm, Z Axis: 180mm Tilt 50 Degree, Rotation 360
  • External Dimension : 1,900X1,950X1,900mm
  • Check Point : Open, Short, Misalign, Insufficient, Excess, Void

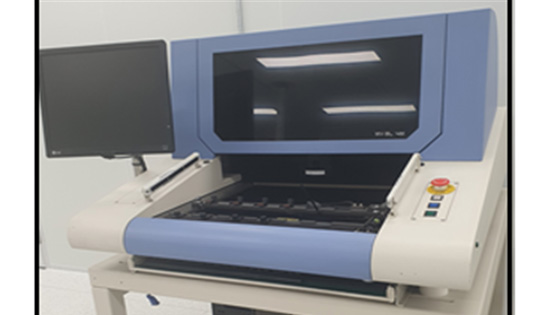

Automated Inspection A.O.I MV-3L
  • PCB Size : 50X50 ~ 450 X 450
  • Minimum Component Ins. : 0603 Chip
    /0.4 Pitch
  • External Dimension : 1,005X1200X1,415
  • Weight : 350Kg
  • Power : 220V

IMT 관련 인증

Category Title
System AS9100
Engineer
/Operator/QC		 J-STD-001 (CIT, CIS),
IPC-610 (CIT, CIS)
Standard MI-I-0860(Rev. 00)
(IMT Work Standard)
